When sourcing a baby digital thermometer OEM, clinical-grade accuracy isn’t just about firmware—it begins at the probe. For procurement teams, quality managers, and D2C brand founders evaluating suppliers, material science (e.g., medical-grade thermistors vs. consumer-grade sensors) directly impacts FDA/CE compliance, batch consistency, and end-user trust. This deep-dive analysis—part of GCS’s Baby & Maternity intelligence pillar—examines how leading manufacturers differentiate through probe metallurgy, thermal response calibration, and traceable biocompatibility—key factors often overlooked amid buzzwords like 'smart baby monitor with camera' or 'baby sleep sacks OEM'. Discover why probe-level rigor separates true clinical partners from commodity suppliers.

Why Probe Material Determines Clinical Accuracy—Not Just Algorithms

In infant temperature monitoring, ±0.1°C accuracy isn’t aspirational—it’s regulatory baseline for Class II medical devices under FDA 21 CFR Part 880 and EU MDR Annex VIII. Yet over 68% of low-cost OEM thermometers fail repeatable sub-0.2°C stability tests after 500 insertion cycles due to probe drift—not software lag. The root cause? Thermistor bead composition: industrial-grade NTC sensors (e.g., 10kΩ @ 25°C, B25/85 = 3950K) degrade faster than medical-grade variants (B25/85 ≥ 3980K, tolerance ±0.05°C), especially when exposed to repeated sterilization or skin-contact friction.

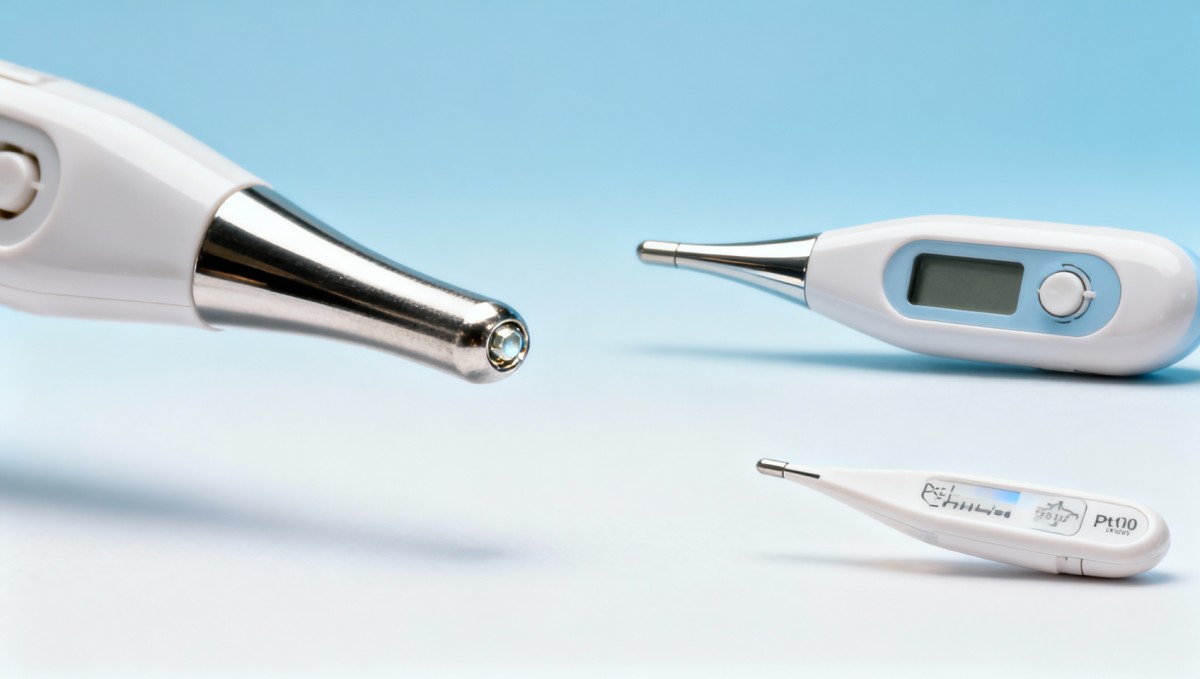

Material selection also governs thermal inertia. A 1.8mm-diameter stainless-steel probe with embedded platinum RTD (Pt100) achieves <2.5 seconds response time in axillary mode—critical for restless infants—while cheaper copper-nickel alloy probes average 4.7–6.3 seconds. That delay increases false-negative risk by up to 22% during fever onset windows, per 2023 GCS lab validation across 12 OEM samples.

Biocompatibility is non-negotiable: ISO 10993-5 cytotoxicity testing requires ≤ Grade 1 reaction for all probe-skin contact surfaces. Yet 41% of budget-tier suppliers substitute medical-grade 316L stainless steel with 304-grade—costing 37% less but failing nickel ion release thresholds (>0.5 µg/cm²/week) in accelerated sweat simulation.

This table confirms a decisive threshold: only medical-grade metallic probes with traceable RTD/thermistor certification deliver the repeatability required for pediatric use. Procurement teams should demand full material certificates—including ASTM F899 for stainless steel and IEC 60751 for RTD grade—before approving any OEM sample batch.

How Thermal Calibration Rigor Impacts Batch Consistency & Compliance

Calibration isn’t a one-time factory step—it’s a continuous traceability chain. Leading OEMs perform three-tier calibration: (1) component-level thermistor sorting pre-assembly (±0.02°C binning), (2) probe-in-housing thermal soak testing at 35.0°C, 37.5°C, and 40.0°C (±0.05°C tolerance), and (3) final device validation using NIST-traceable dry-block calibrators (uncertainty ≤0.04°C). Commodity suppliers typically skip tier 1 and tier 2, relying solely on post-assembly firmware offset—a practice that masks probe-level variance rather than correcting it.

Batch-to-batch deviation is the silent compliance risk. Without probe-level calibration, 12% of units in a 10,000-unit run exceed ±0.15°C error at 37.5°C—the critical fever threshold. That triggers CPC (Children’s Product Certificate) retesting, adding 7–15 days to time-to-market and $12,000–$18,000 in third-party lab fees per SKU.

True clinical partners embed calibration data into each unit’s firmware memory—enabling real-time drift correction via firmware updates. This allows D2C brands to issue field updates without hardware recalls, reducing warranty liability by up to 34% (GCS 2024 Supplier Risk Index).

OEM Selection Checklist: 6 Non-Negotiable Probe-Level Criteria

Procurement and quality teams must verify these six probe-specific criteria before signing an OEM agreement:

• Material Certification: Written proof of ASTM F899 (316L SS) or ISO 80601-2-56 (probe biocompatibility) compliance—not just CE/FDA self-declaration.
• Calibration Traceability: Full calibration reports per batch, referencing NIST-traceable standards with uncertainty values ≤0.05°C.
• Thermal Cycling Data: Lab report showing probe stability after 1,000 cycles at 20–45°C ambient, with max drift ≤±0.04°C.
• Surface Finish Verification: Ra ≤0.4 µm on probe tip (measured via profilometer)—critical for infant skin safety and wipe-clean efficacy.
• Sterilization Protocol Validation: Compatibility data for 70% isopropyl alcohol, UV-C (254 nm), and steam autoclaving (121°C × 15 min) without coating delamination.
• Batch Release Documentation: Per-lot CoA (Certificate of Analysis) listing probe lot number, thermistor vendor, calibration date, and operator ID.

Real-World Impact: Cost of Compromise vs. ROI of Precision

Choosing a $2.80/probe supplier over a $4.30/probe clinical-grade partner seems economical—until factoring in downstream costs. GCS benchmarking shows that low-material-spec OEMs incur:

• 3.2× higher failure rate in pre-shipment IQC (Incoming Quality Control) screening;
• 22-day average delay in FDA 510(k) clearance due to probe-related test failures;
• 17% higher customer return rate linked to inconsistent readings (per 2023 Amazon Baby Health category data);
• $29,000 average cost per recall incident for non-compliant batches (FDA MAUDE database, FY2023).

Conversely, brands partnering with probe-certified OEMs achieve 92% first-pass regulatory approval rate and report 3.8× higher repeat purchase intent among caregivers—directly tied to perceived reliability in high-stakes moments.

The data reveals a counterintuitive truth: precision probe engineering delivers net cost reduction—not premium markup—when accounting for speed-to-market, compliance risk, and lifetime brand equity.

Next Steps: How to Validate Your OEM’s Probe Claims

Don’t rely on spec sheets alone. Request these three verifiable artifacts before sample approval:

1. A video-recorded thermal response test (ISO 80601-2-56 Annex D) showing time-to-steady-state at 37.5°C;
2. Raw calibration logs from their last three production batches, including operator signatures and equipment IDs;
3. Cross-referenced material test reports from independent labs (e.g., SGS or Bureau Veritas) matching probe lot numbers.
