Core characteristics:

1. Outstanding corrosion resistance:

It has extremely high tolerance to seawater and salt water environments, and has excellent resistance to seawater erosion corrosion and stress corrosion cracking.

It has good resistance to a variety of acids, alkalis, and salt solutions (especially hydrofluoric acid, sulfuric acid, phosphoric acid, alkaline media, etc.).

It performs better than stainless steel in reducing media and neutral media.

Excellent resistance to chloride ion stress corrosion cracking.

2. High strength and good mechanical properties:

It maintains high strength at both room temperature and high temperature (Monel K-500 can obtain higher strength through aging hardening).

Good toughness and ductility, easy to form and process (especially in the annealed state).

3. Wide applicable temperature range:

It can maintain good toughness and strength in low temperature (cryogenic) environment (down to -200°C).

It has good strength and oxidation resistance at **high temperature** (up to about 480°C - 540°C, depending on the alloy grade and stress level).

4. Excellent wear and erosion resistance:

It is particularly suitable for corrosive fluid environments containing solid particles and high-speed flow.

5. Good processability:

It can be formed by conventional cold and hot working methods (although it is more difficult than carbon steel or austenitic stainless steel).

It can be welded (Monel 400 has good weldability; Monel K-500 needs to pay attention to the softening of the heat-affected zone).

Main alloy grades:

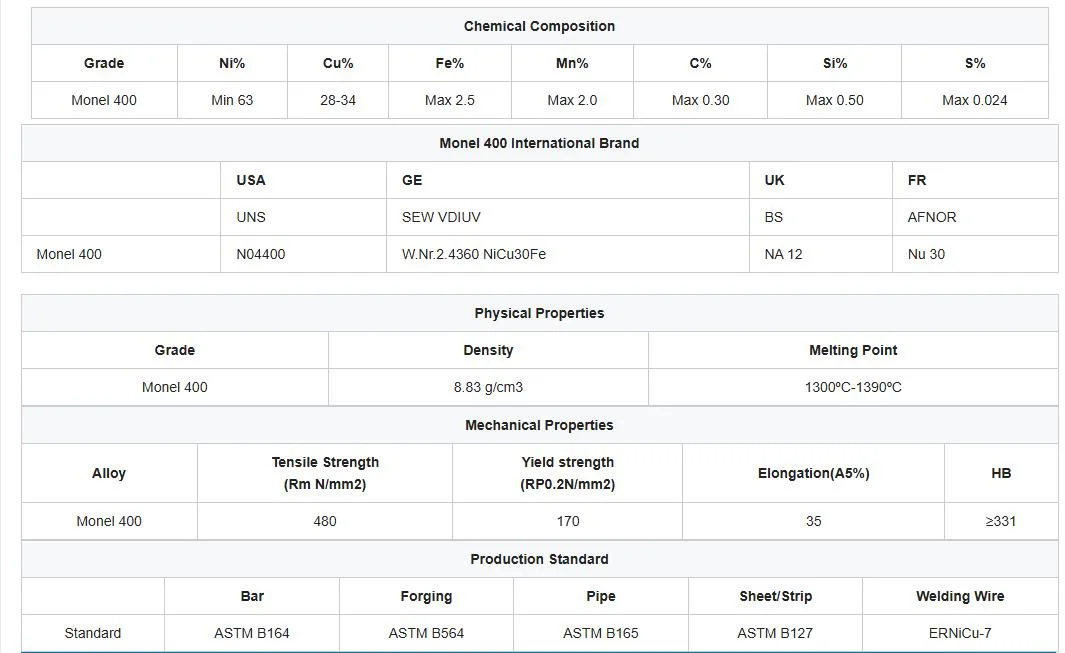

Monel 400 (UNS N04400): Standard alloy, containing about 67% nickel and 23% copper, as well as a small amount of iron, manganese and other elements. Provides excellent comprehensive corrosion resistance and good mechanical properties.

Monel K-500 (UNS N05500): Aluminum (about 2.3-3.15%) and titanium (about 0.35-0.85%) are added to Monel 400. The strength and hardness can be significantly improved by aging heat treatment, while maintaining the good corrosion resistance of Monel 400. It has higher resistance to wear and erosion.

Typical application areas:

Marine engineering and shipbuilding: seawater pipeline systems, pump shafts, propeller shafts, valves, fasteners, heat exchanger tube bundles.

Chemical and petrochemical: reactors, containers, pipelines, pumps, valves, and heat exchangers that handle corrosive media such as sulfuric acid, hydrofluoric acid, halogens, alkalis, and organic acids.

Oil and gas: offshore platform equipment, downhole tools, valve assemblies, instrument pipes, and pipelines for transporting sulfur-containing oil and gas or brine.

Energy: flue gas desulfurization systems in power plants, boiler feedwater heater tubes, and specific components for the nuclear industry.

Aerospace: fuel and hydraulic system pipelines, engine components.

Vacuum equipment: chambers, pipes, flanges in high vacuum or ultra-high vacuum systems.

Pharmaceutical and food processing: equipment that requires high cleanliness and corrosion resistance (must ensure compliance with relevant hygiene standards).

Manufacturing standards and specifications:

Standards: Usually produced according to ASTM/ASME standards, such as:

ASTM B163 / ASME SB163 (seamless nickel and nickel alloy condenser and heat exchanger tubes)

ASTM B165 / ASME SB165 (seamless nickel-copper alloy tubes)

ASTM B725 / ASME SB725 (welded nickel and nickel alloy tubes)

ASTM B730 (welded nickel and nickel alloy tubes - special purposes)

Can also be manufactured according to other national standards such as DIN, EN, JIS or customer-specific requirements.

Specifications:

Type: seamless tube, welded tube.

Size range: outer diameter ranges from capillary size to several inches, wall thickness ranges from thin wall to thick wall.

State: annealed, hot-worked, cold-worked, solution-treated (K-500), aging-treated (K-500). The most commonly used state is annealed.

Surface treatment: pickling, bright annealing, grinding, polishing, etc.
